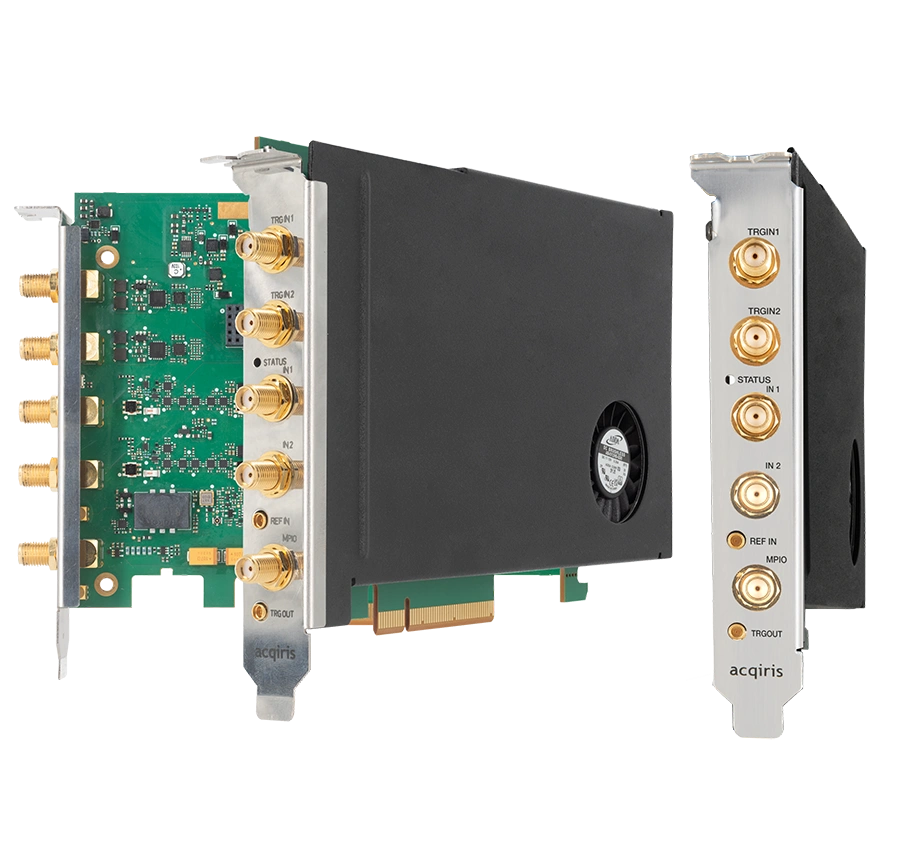

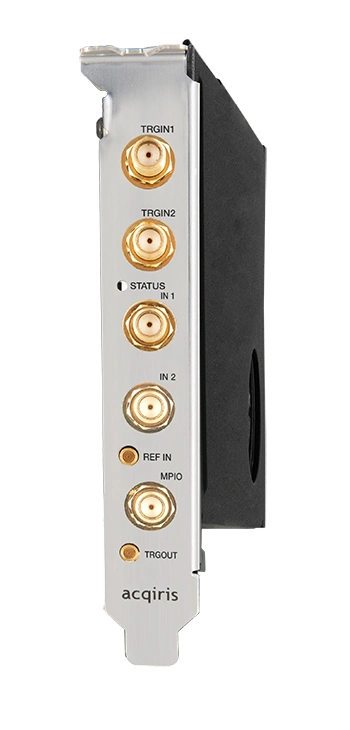

12-bit SA6 DAQ Card, up to 1 GS/s
The SA6 Data Acquisition (DAQ) PCIe card delivers an unmatched combination of performance, size, and value: accurately capturing waveforms at 1 GS/s simultaneously on 2 channels and enabling powerful real-time signal processing into a super-compact footprint.

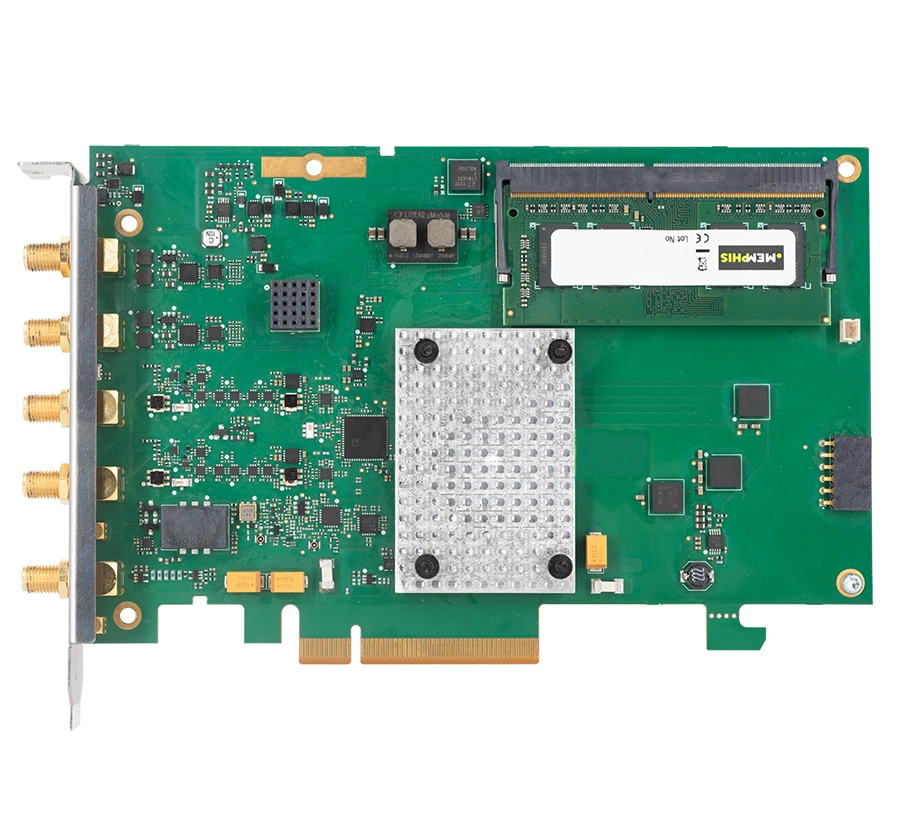

Thanks to an innovative low‑noise front‑end design, this new generation of 12-bit DAQ card (also named ADC card or digitizer) accurately captures waveforms at up to 1 GS/s, achieving excellent signal fidelity and high‑contrast imaging. Specially designed to meet the needs of OEMs or advanced research teams, the SA6 focuses on addressing typical medical and industrial application needs.
- Ultra compact size: True half-length PCIe x8 slot with an integrated fan
- Excellent signal fidelity: Innovative low-noise front-end achieving 9.3 ENOB
- Optimized dynamic range: Flexible full-scale input range selectable by software (250 mV, 500 mV, 1 V, 2 V) allows you to tune signal levels, maximizing both effective resolution and spurious-free dynamic range (SFDR), particularly for low-amplitude signals
- High-throughput architecture: Streaming and direct GPU transfer via RDMA
- Low-power consumption: Typical power consumption ~20 W reduces thermal constraints and supports reliable operation.
Combined with the Acqiris AQOCT Solution Package, the SA6 integrates high-speed data acquisition, real-time OCT signal processing, and streaming. It delivers clinical-grade image clarity and premium dynamic range, providing low-latency OCT image reconstruction at typical 50–200 kHz A-scan rates. All of this is achieved within the most compact PCIe form factor in its class.
The architecture of the SA6 allows flexibility and customization capabilities to tailor the system to your specific needs. Contact us for more details!
